A Eulogy for Russian Mak-Newt Telescopes Part Two – optical analysis

Optical Analysis

The optical recipe for the MN76 was examined using our lens design software.

MN76 Seidel and field aberrations
MN76 Seidel and field aberrations

In this F6 system, coma and astigmatism are small. While distortion and field curvature dominate, they are also quite small. By using an APS-C sized sensor, and ignoring the field beyond 34mm diameter, the aberrations are reduced significantly through refocusing. We also see that there is a little scope for LSA reduction by refocusing between filter changes.

MN76 field distortion
MN76 field distortion
MN76 MTF with 40mm minoraxis diagonal
MN76 MTF with 40mm minoraxis diagonal
MN76 MTF with 66mm minoraxis diagonal
MN76 MTF with 66mm minoraxis diagonal

Refer to Fig 11 and 12. The MTF worsens with diagonal size increase, as expected, due to diffraction effects. This instrument, when fitted with a small diagonal, is a high-resolution ‘planet killer’. But irradiance is too low for good imaging, at the third field point (0.7 degrees).  Also, aberration starts to be significant at the extreme edge of the field, but this will not be apparent visually, due to low irradiance and/or low magnification respectively.

With the larger 66mm diagonal, flat-fielding will be less critical in APS-C sensors, while contrast at the full-field for high spatial resolution targets will be poor. For deepsky imaging, this is not very important, but it implies the need for an interchangeable diagonal if planetary imaging performance is to be retained.

MN76 RMS spot size vs field angle
MN76 RMS spot size vs field angle

Setting up the instrument for a nominal 2 degree field, corresponding to a 45mm diameter image circle, and deprecating the image quality outside of the 34mm diameter central region relevant to APS-C sensors, allows deepsky visual performance to be assessed. Figure 13 and 14 document spot size across an optimally curved image surface (R = -2700mm) computed for the central 1.4 degrees of the 2 degree field.

MN76 polychromatic spots vs field angle
MN76 polychromatic spots vs field angle

The Airy disk diameter of this scope is 0.0098mm at the C-line (656.3nm). Note the implied excellent image quality.

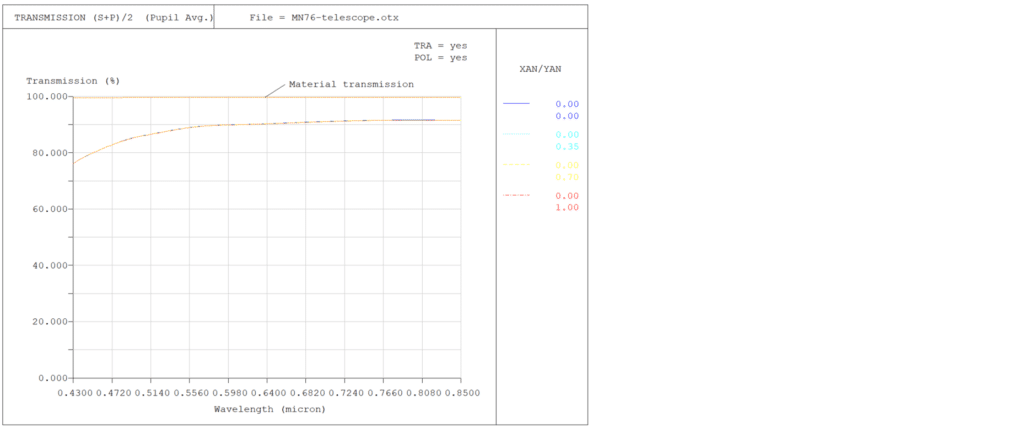

MN76 light transmission vs field angle
MN76 light transmission vs field angle
MN76 sequential light absorption onaxis vs wavelength
MN76 sequential light absorption on-axis through the various surfaces vs wavelength

Now, with deepsky imaging in mind, let us consider a flat focal plane, not one optimally-curved.

MN76 RMS spot size vs fieldangle flat focal plane
MN76 RMS spot size vs fieldangle flat focal plane
MN76 polychrom spots vs field angle flat focal plane
MN76 polychrom spots vs field angle flat focal plane

Looking at the spot sizes over the extended (photographic) wavelength range below, and enforcing a flat focal surface, indicates the imaging potential as a 1100mm EFL, 2 degree astrograph.

The key takeaway is that, despite received wisdom about the small Petzval radii of MN designs, it looks perfectly possible to produce diffraction-limited imagery across at least an APS-C sensor, without additional corrective optics.

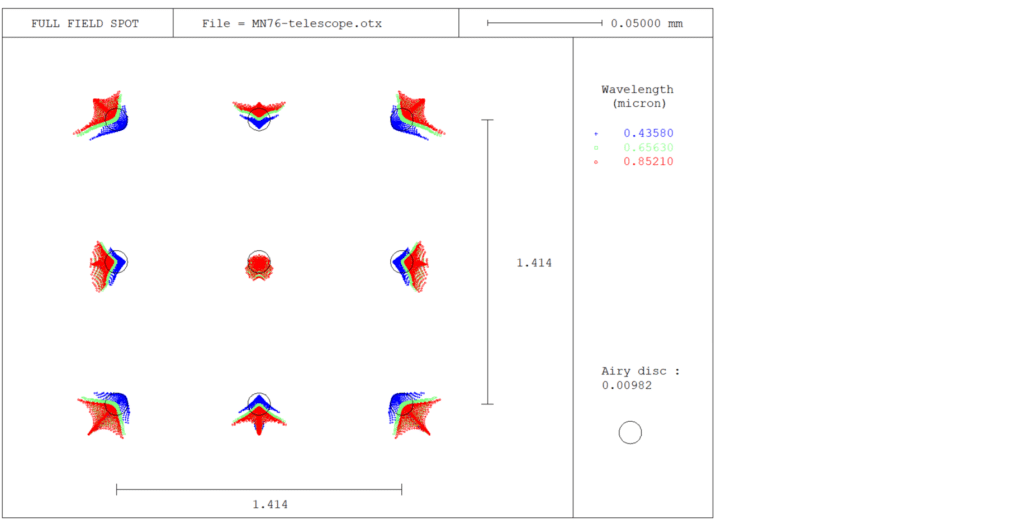

MN76 tolerance sensitivity to corrector decentration
Tolerance Sensitivity of Corrector Meniscus Decentration of 1.0 mm. 66mm minor axis diagonal fitted (30% obstruction). Flat focal surface. Polychromatic spot diagram.

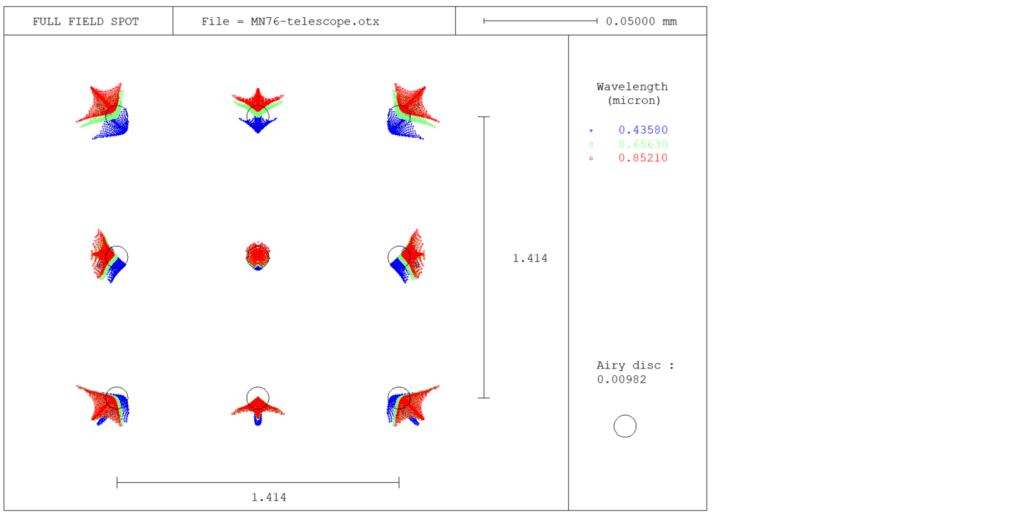

Tolerance Sensitivity to Corrector Meniscus Tilt of 0.5 degrees. 66mm minor axis diagonal fitted (30% obstruction). Flat focal surface. Polychromatic spot diagram.

All optics in a MN telescope are spherical. Consequently, no optical axis exists on the primary that needs alignment with the optical axis and only translations rather than tilts need to be addressed for good collimation. In effect, there are only 2 degrees of freedom to worry about.

The corrector lens is a different matter. Both decentration and tilt need to be controlled. However, as is seen in the spot plots below, fairly significant deviations from nominal positioning are possible with relatively small effect on image quality.

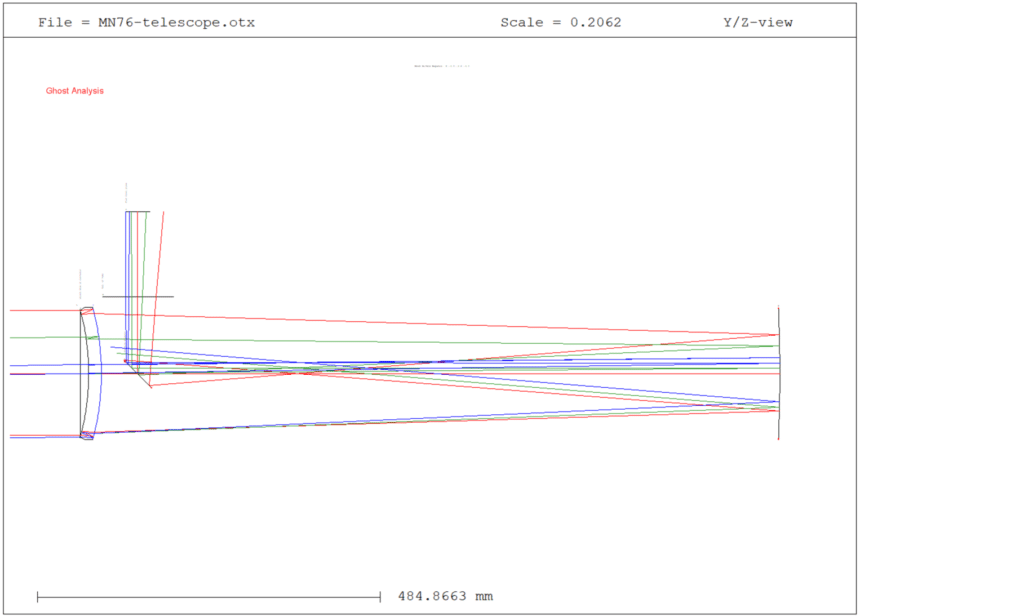

Optical element Stability and Ghosting. Ghost image sensitivity on all full-aperture Mak’s focused at infinity is low, as only the corrector generates ghosts, and they are extremely weak. See figure – an analysis of the single ghost of significance, assuming a source at infinity.

The optical arrangement of Intes-Micro Mak scopes is admirable for portable equipment. The closed tube, strong corrector, generous tube diameters, management of tube currents and insect-excluding cooling duct filters enable rough handling, while the push-pull primary cell holds tip/tilt collimation well. The diagonal mirror mount is not so well engineered, and can rotate under vibratory loads e.g. transport. The corrector lens is stable, provided it has been radially shimmed properly.

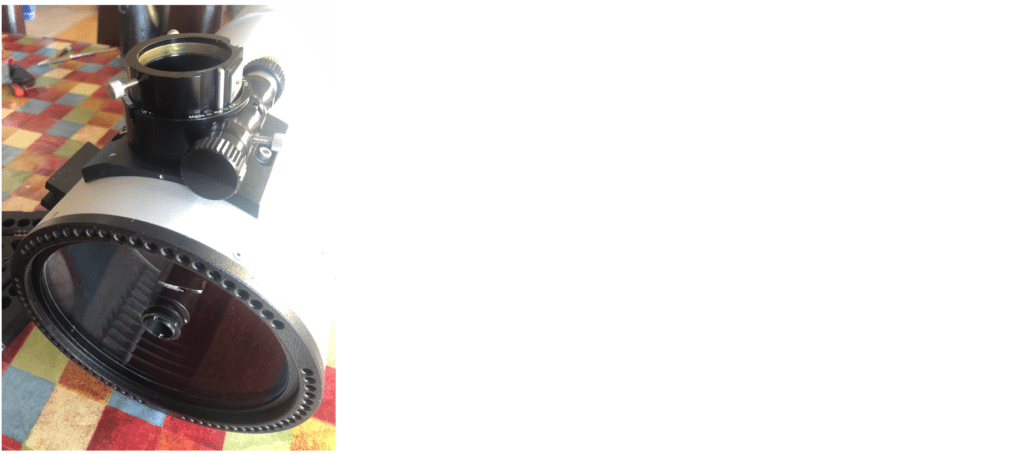

Focusing arrangements need careful thought. Backfocus of the MN76 is nominally 123 mm, which sounds generous but is not. Much of this is eaten up by conventional Crayford or rack and pinion focusers, leaving a camera rotator, filter wheel, off-axis guider and camera to fight over the remainder.

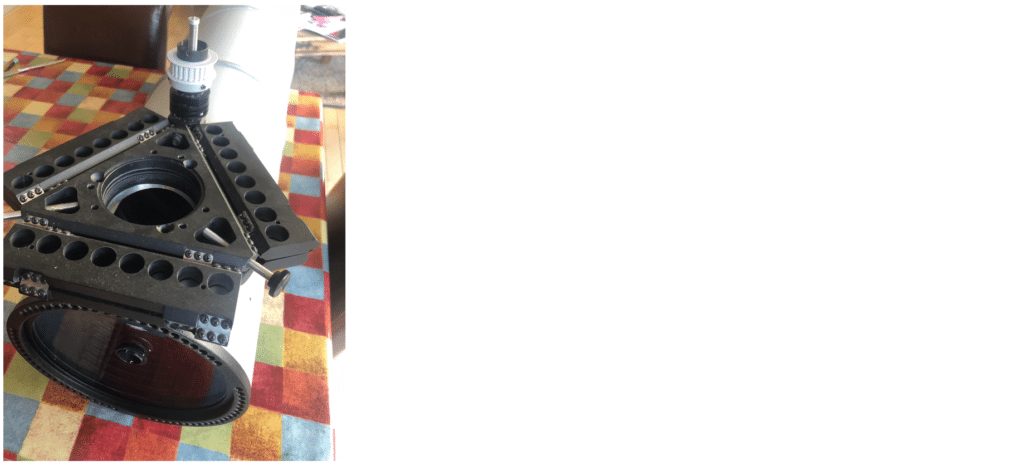

Donald Clement marketed a flexural parallel-link focuser for a number of years. This was characterised by having a low profile in relation to the travel available, conserving backfocus. Food for thought…

Verdict on suitability for deepsky astroimaging

The strengths of the Intes-Micro 7” Mak-Newt astrograph will be for APS-C and small chip imaging, at medium apertures, where refractors are becoming expensive and heavy. The 1100mm EFL fills the image scale between Celestron’s RASA line (610mm EFL) and various RC and Dall-Kirkham reflectors.

The MN is easily portable, tends to have stable collimation, and some tolerance of rough handling. There are no chromatic issues, even well into the IR range where many APO lenses and refractors would struggle to deliver low aberration images.

The significant image extraction distance of 123mm enables various types of low profile focuser to be used, for example, large aperture helicoids, the Clement flexural focuser, or possibly a low profile large-bore rack & pinion model. It should be possible to allocate 65mm of backfocus to the imaging train, which is sufficient.

Exchanging diagonals is not simple, as it involves re-collimation, which for a Mak-Newt takes more time than for a simple Newtonian, and is absent in most APO’s. It may be worthwhile engineering a better secondary mount that is a modular install into a hub permanently fitted to the corrector lens.

Much stiffer rotating rings will also be needed for supporting the OTA than provided by Intes-Micro.

The benefit of this project will be the absence of diagonal spikes on images, i.e., ‘refractor-like’ images, combined with relatively short FL compared with SCT’s and small RC telescopes. The relatively small central obscuration and absence of ghosting and veiling glare may or may not be apparent in imaging results.
